Features

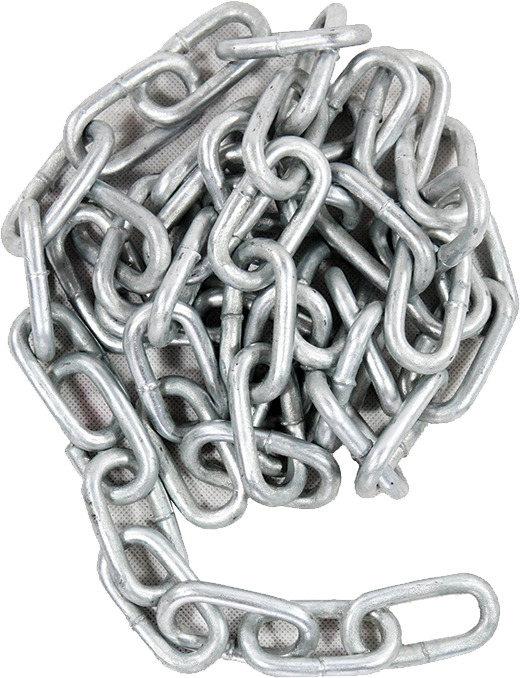

Hot Dip Galvanised Long Link General Purpose Chain
Small diameter chains with long inside link measurements for general purpose use.

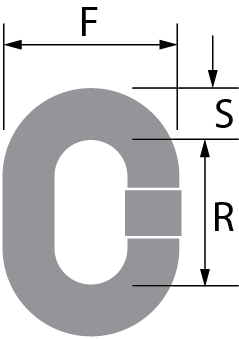

SKU | Chain Size | F (mm) | R (mm) | S (mm) | Max. Working Load |
---|---|---|---|---|---|
691781 | 3mm | 15.4 | 23.20 | 3.00 | 0.05t |
691782 | 4mm | 18.4 | 26.80 | 3.80 | 0.09t |
691783 | 5mm | 21.5 | 29.80 | 4.75 | 0.15t |
691784 | 6mm | 25 | 34.00 | 6.35 | 0.326t |
691785 | 8mm | 31 | 41.00 | 8.00 | 0.54t |
691786 | 10mm | 38.7 | 49.00 | 10.00 | 0.846t |
MWL: Maximum Working Loads for guidance only in selection of chain with sufficient strength for intended application. |
