Features

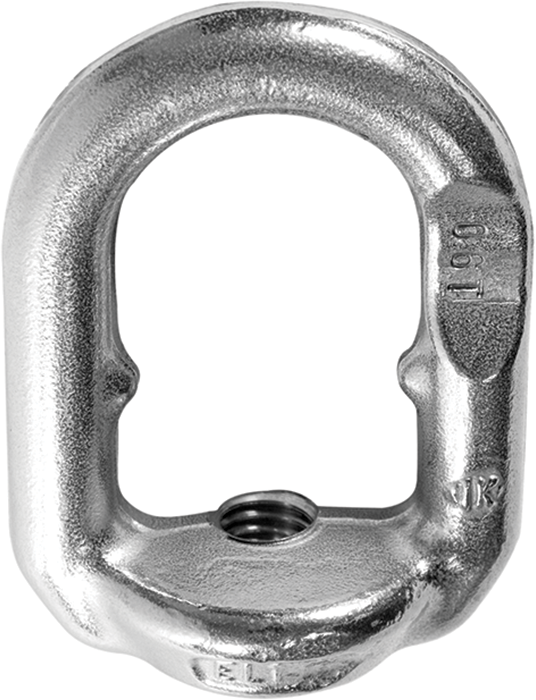

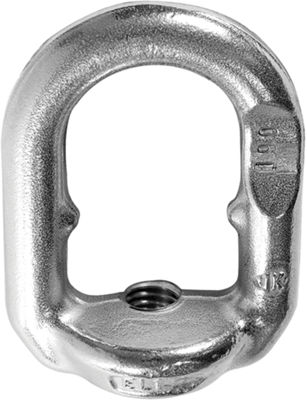

Eye Nuts - Certified Stainless Steel
Stainless Steel Eye Nut. Polished finish.

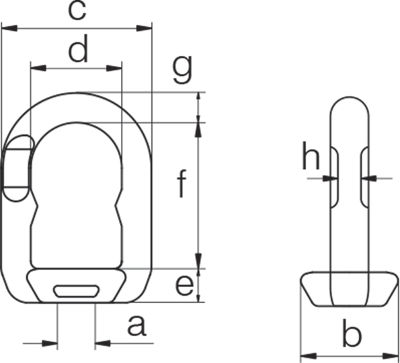

| SKU | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | Manufacturer's Code | Thread | Weight | Working Load Limit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 691633 | M16 x 2.00 | 44 | 65 | 37 | 17 | 60 | 14 | 8 | EL16I | M16 | 0.37kg | 1t |
| 691634 | M20 x 2.50 | 44 | 65 | 37 | 17 | 60 | 14 | 8 | EL20I | M20 | 0.37kg | 2t |
| 691635 | M24 x 3.00 | 52 | 79 | 48 | 21 | 75 | 16 | 11 | EL24I | M24 | 0.63kg | 3t |
| * WLL applicable when angle of use is limited to 30º from the axis. | ||||||||||||
